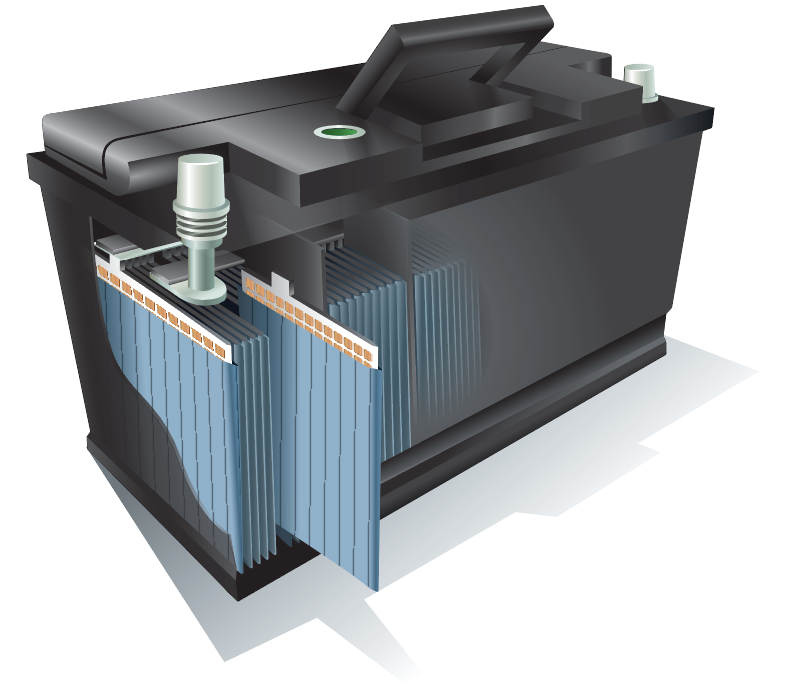

Using photos and descriptions, I drew a cutaway diagram of a vehicle battery to show the client's product (separator film) in-use. This vector image has been used in print ads, trade show displays and on the client's website. I have produced other versions of this product application, showing rechargeable battery configurations for other types of vehicles.      Sept 2018

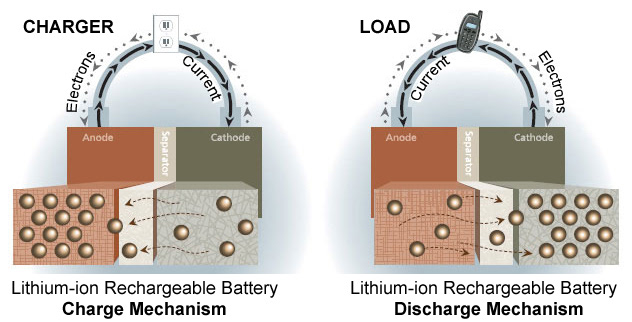

Below, the challenge was to simply and clearly show the role of the separation film in a rechargeable Lithium-ion battery.     April 2015
Software: Adobe Illustrator
Client: Manufacturer of separator film used in making rechargeable vehicle batteries​​​​​​​
